Formula interface to geom_rug()

Source: R/gf_functions.R
gf_rug.Rd

gf_rugx() and gf_rugy() are versions that only add a rug to x- or y- axis. By default, these functions do not inherit from the formula in the original layer (because doing so would often result in rugs on both axes), so the formula is required.

Usage

gf_rug(
  object = NULL,
  gformula = NULL,
  data = NULL,
  ...,
  sides = "bl",
  alpha,
  color,
  group,
  linetype,
  linewidth,
  xlab,
  ylab,
  title,
  subtitle,
  caption,
  geom = "rug",
  stat = "identity",
  position = "identity",
  show.legend = NA,
  show.help = NULL,
  inherit = TRUE,
  environment = parent.frame()
)

gf_rugx(
  object = NULL,
  gformula = NULL,
  data = NULL,
  ...,
  sides = "b",
  alpha,
  color,
  group,
  linetype,
  linewidth,
  height = 0,
  xlab,
  ylab,
  title,
  subtitle,
  caption,
  geom = "rug",
  stat = "identity",
  position = "identity",
  show.legend = NA,
  show.help = NULL,
  inherit = FALSE,
  environment = parent.frame()
)

gf_rugy(
  object = NULL,
  gformula = NULL,
  data = NULL,
  ...,
  sides = "l",
  alpha,
  color,
  group,
  linetype,
  linewidth,
  width = 0,
  xlab,
  ylab,
  title,
  subtitle,
  caption,
  geom = "rug",
  stat = "identity",
  position = "identity",
  show.legend = NA,
  show.help = NULL,
  inherit = FALSE,
  environment = parent.frame()
)

Arguments

object

When chaining, this holds an object produced in the earlier portions of the chain. Most users can safely ignore this argument. See details and examples.

gformula

A formula with shape y ~ x (gf_rug()) or ~ x (gf_rugx()) or ~ y (gf_rugy()).

data

The data to be displayed in this layer. There are three options:

If NULL, the default, the data is inherited from the plot data as specified in the call to ggplot().

A data.frame, or other object, will override the plot data. All objects will be fortified to produce a data frame. See fortify() for which variables will be created.

A function will be called with a single argument, the plot data. The return value must be a data.frame, and will be used as the layer data. A function can be created from a formula (e.g. ~ head(.x, 10)).

...

Additional arguments. Typically these are (a) ggplot2 aesthetics to be set with attribute = value, (b) ggplot2 aesthetics to be mapped with attribute = ~ expression, or (c) attributes of the layer as a whole, which are set with attribute = value.

sides

A string that controls which sides of the plot the rugs appear on. It can be set to a string containing any of "trbl", for top, right, bottom, and left.

alpha

Opacity (0 = invisible, 1 = opaque).

color

A color or a formula used for mapping color.

group

Used for grouping.

linetype

A linetype (numeric or "dashed", "dotted", etc.) or a formula used for mapping linetype.

linewidth

A numerical line width or a formula used for mapping linewidth.

xlab

Label for x-axis. See also gf_labs().

ylab

Label for y-axis. See also gf_labs().

title, subtitle, caption

Title, sub-title, and caption for the plot. See also gf_labs().

geom

A character string naming the geom used to make the layer.

stat

The statistical transformation to use on the data for this layer. When using a geom_*() function to construct a layer, the stat argument can be used to override the default coupling between geoms and stats. The stat argument accepts the following:

  • A Stat ggproto subclass, for example StatCount.

  • A string naming the stat. To give the stat as a string, strip the function name of the stat_ prefix. For example, to use stat_count(), give the stat as "count".

  • For more information and other ways to specify the stat, see the layer stat documentation.

position

A position adjustment to use on the data for this layer. This can be used in various ways, including to prevent overplotting and improving the display. The position argument accepts the following:

  • The result of calling a position function, such as position_jitter(). This method allows for passing extra arguments to the position.

  • A string naming the position adjustment. To give the position as a string, strip the function name of the position_ prefix. For example, to use position_jitter(), give the position as "jitter".

  • For more information and other ways to specify the position, see the layer position documentation.

show.legend

logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes. It can also be a named logical vector to finely select the aesthetics to display. To include legend keys for all levels, even when no data exists, use TRUE. If NA, all levels are shown in legend, but unobserved levels are omitted.

show.help

If TRUE, display some minimal help.

inherit

A logical indicating whether default attributes are inherited.

environment

An environment in which to look for variables not found in data.

height

amount of vertical jittering when position is jittered.

width

amount of horizontal jittering when position is jittered.

Value

a gg object

Specifying plot attributes

Positional attributes (a.k.a, aesthetics) are specified using the formula in gformula. Setting and mapping of additional attributes can be done through the use of additional arguments. Attributes can be set can be set using arguments of the form attribute = value or mapped using arguments of the form attribute = ~ expression.

In formulas of the form A | B, B will be used to form facets using ggplot2::facet_wrap() or ggplot2::facet_grid(). This provides an alternative to gf_facet_wrap() and gf_facet_grid() that is terser and may feel more familiar to users of lattice.

Evaluation

Evaluation of the ggplot2 code occurs in the environment of gformula. This will typically do the right thing when formulas are created on the fly, but might not be the right thing if formulas created in one environment are used to create plots in another.

See also

ggplot2::geom_rug()

Examples

data(penguins, package = "palmerpenguins")
gf_point(bill_length_mm ~ bill_depth_mm, data = penguins) |>
  gf_rug(bill_length_mm ~ bill_depth_mm)
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_point()`).
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_rug()`).
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_rug()`).


# There are several ways to control x- and y-rugs separately
gf_point(bill_length_mm ~ bill_depth_mm, data = penguins) |>
  gf_rugx(~bill_depth_mm, data = penguins, color = "red") |>
  gf_rugy(bill_length_mm ~ ., data = penguins, color = "green")
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_point()`).
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_rug()`).
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_rug()`).


gf_point(bill_length_mm ~ bill_depth_mm, data = penguins) |>
  gf_rug(. ~ bill_depth_mm, data = penguins, color = "red", inherit = FALSE) |>
  gf_rug(bill_length_mm ~ ., data = penguins, color = "green", inherit = FALSE)
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_point()`).
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_rug()`).
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_rug()`).

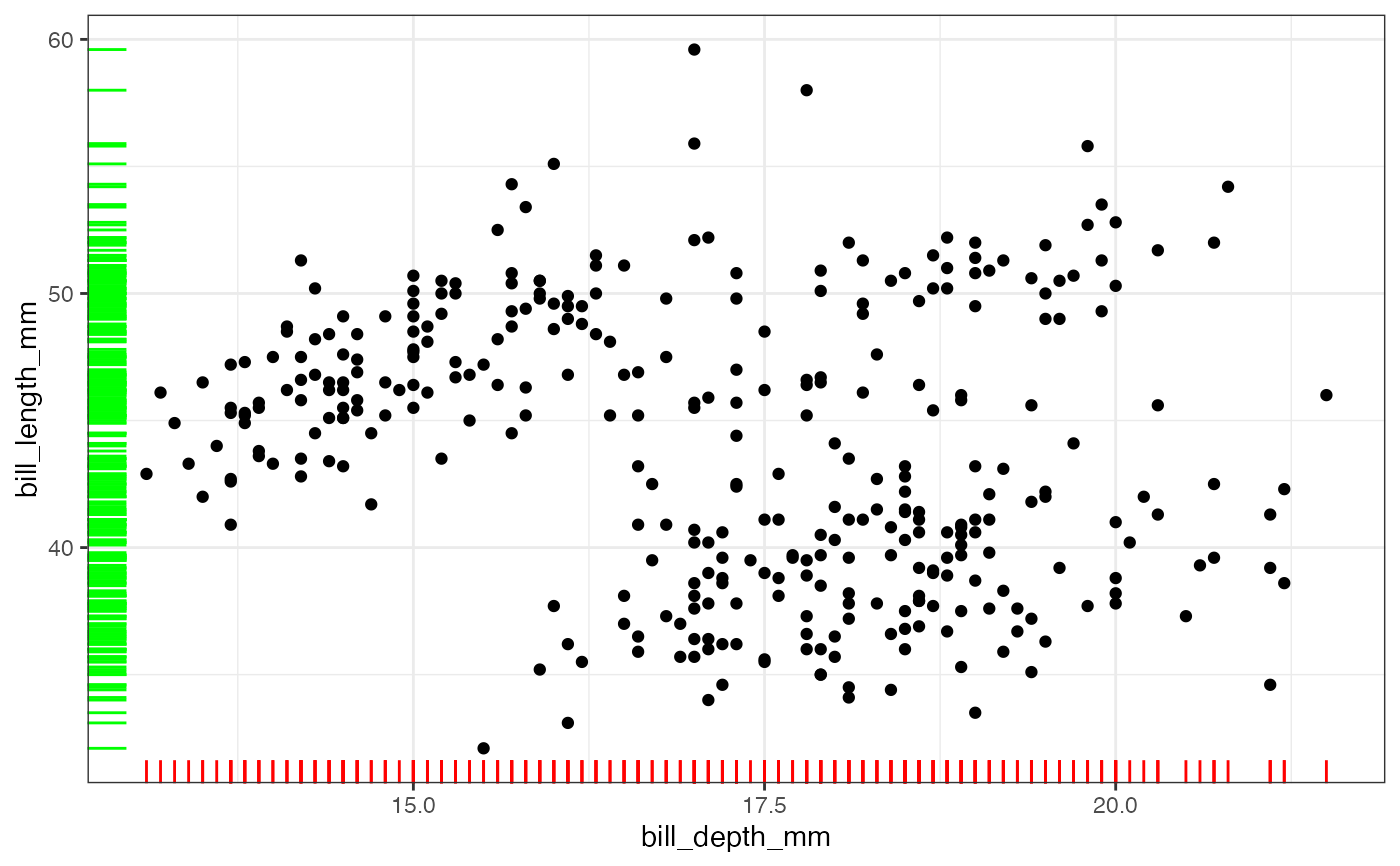

gf_point(bill_length_mm ~ bill_depth_mm, data = penguins) |>
  gf_rug(. ~ bill_depth_mm, data = penguins, color = "red", sides = "b") |>
  gf_rug(bill_length_mm ~ ., data = penguins, color = "green", sides = "l")
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_point()`).
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_rug()`).
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_rug()`).

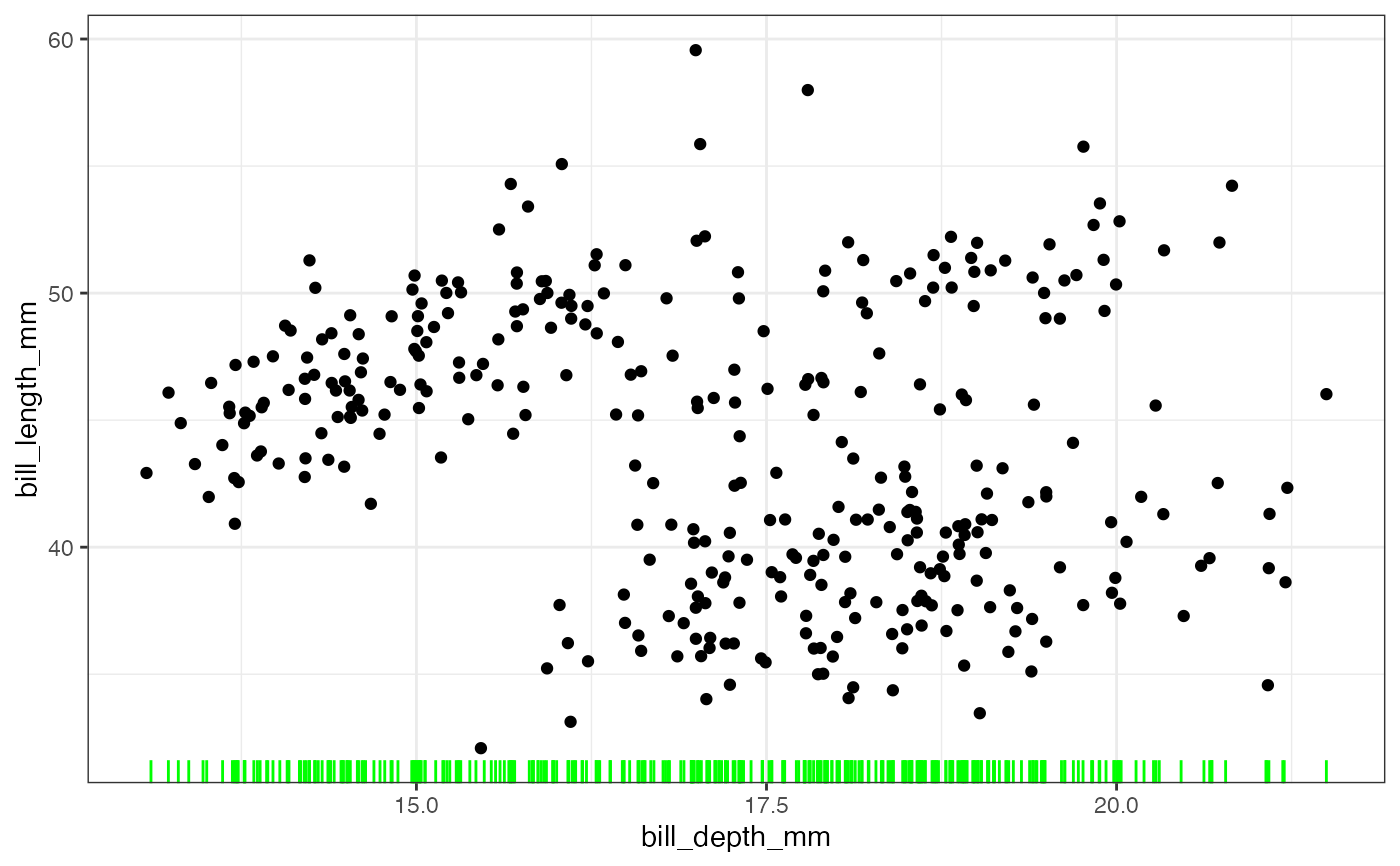

# jitter requires both an x and a y, but we can turn off one or the other with sides
gf_jitter(bill_length_mm ~ bill_depth_mm, data = penguins) |>
  gf_rug(color = "green", sides = "b", position = "jitter")
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_point()`).
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_rug()`).

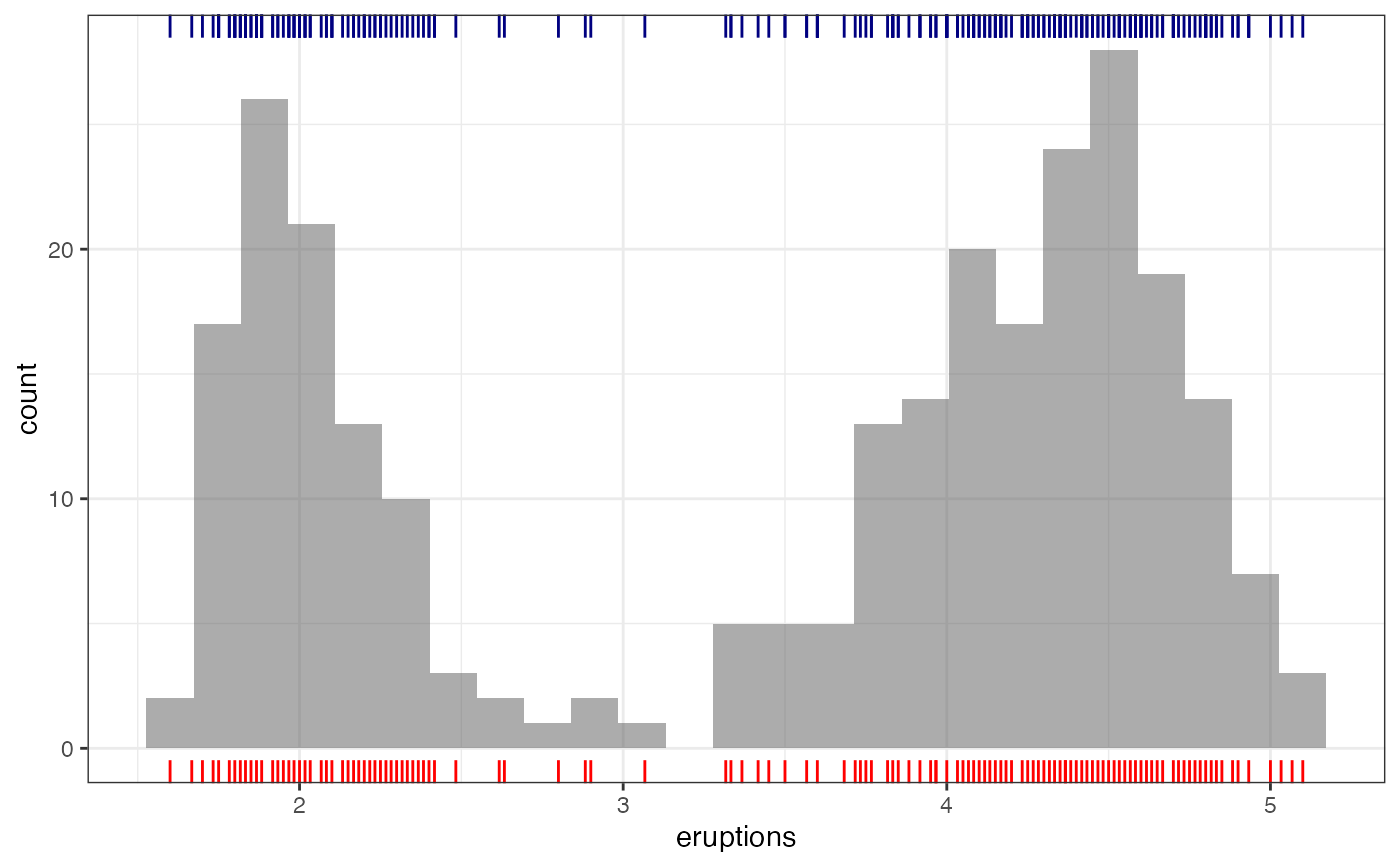

# rugs work with some 1-varialbe plots as well.
gf_histogram(~eruptions, data = faithful, bins = 25) |>
  gf_rug(~eruptions, data = faithful, color = "red") |>
  gf_rug(~eruptions, data = faithful, color = "navy", sides = "t")


# we can take advantage of inheritance to shorten the code
gf_histogram(~eruptions, data = faithful, bins = 25) |>
  gf_rug(color = "red") |>
  gf_rug(color = "navy", sides = "t")

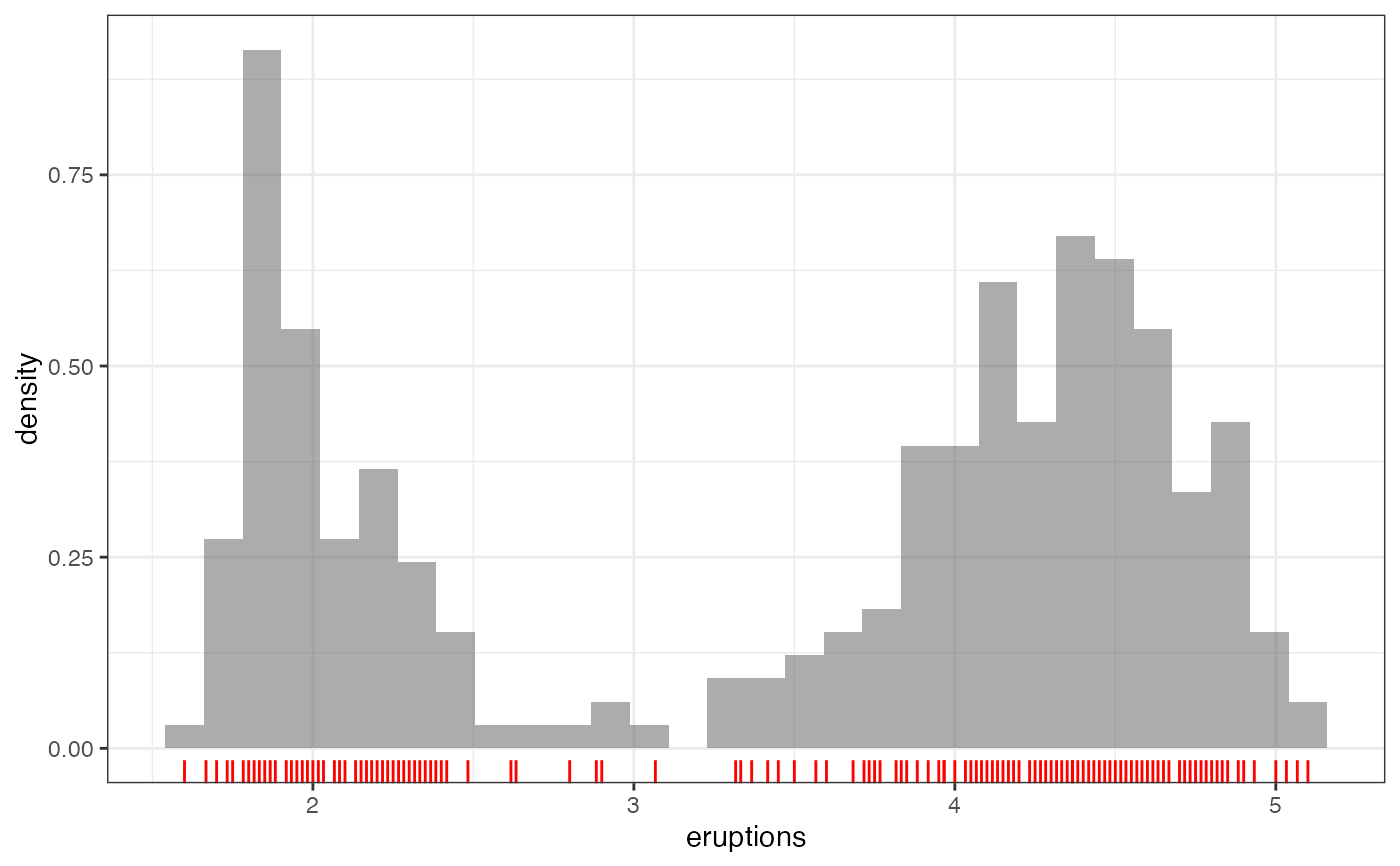

# Need to turn off inheritance when using gf_dhistogram:
gf_dhistogram(~eruptions, data = faithful) |>
  gf_rug(~eruptions, data = faithful, color = "red", inherit = FALSE)
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.

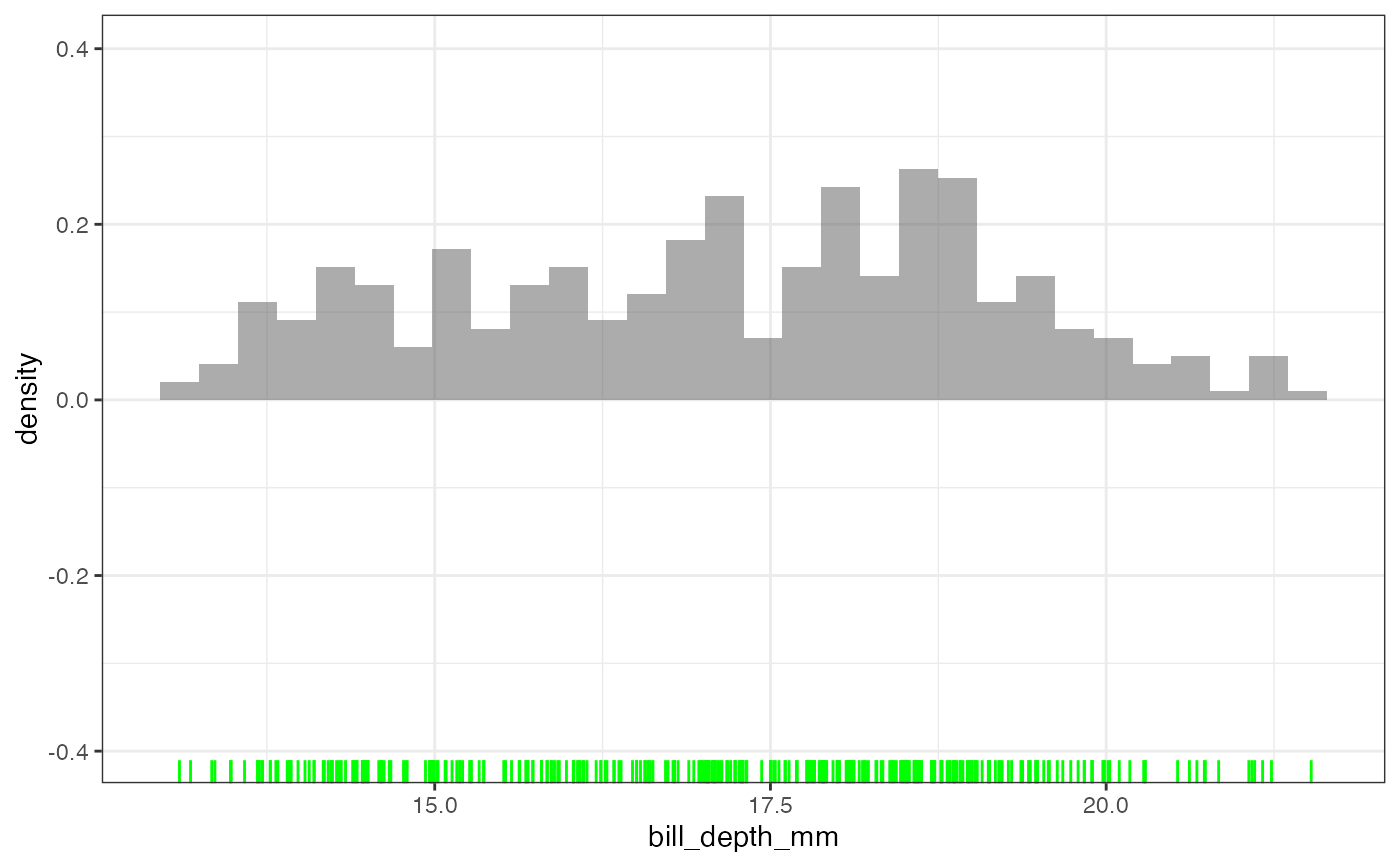

# using jitter with gf_histogram() requires manually setting the y value.
gf_dhistogram(~bill_depth_mm, data = penguins) |>
  gf_rug(0 ~ bill_depth_mm, data = penguins, color = "green", sides = "b", position = "jitter")
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.
#> Warning: Removed 2 rows containing non-finite outside the scale range (`stat_bin()`).
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_rug()`).

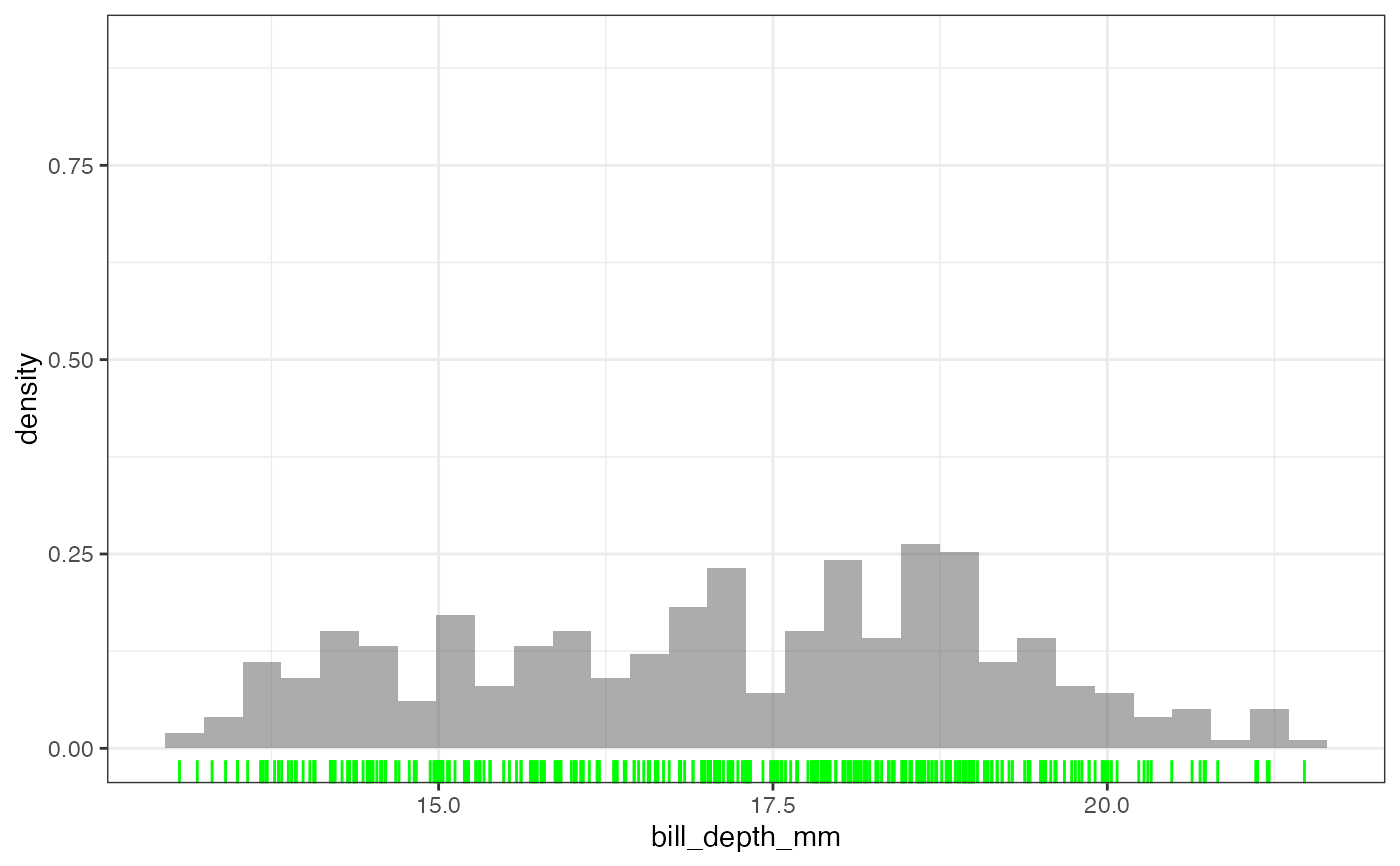

# the choice of y value can affect how the plot looks.
gf_dhistogram(~bill_depth_mm, data = penguins) |>
  gf_rug(0.5 ~ bill_depth_mm, data = penguins, color = "green", sides = "b", position = "jitter")
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.
#> Warning: Removed 2 rows containing non-finite outside the scale range (`stat_bin()`).
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_rug()`).
