Add facets to a plot

Source: R/gf_aux.R
gf_facet_grid.Rd

These functions provide more control over faceting than is possible using the formula interface.

Usage

gf_facet_wrap(object, ...)

gf_facet_grid(object, ...)

Arguments

object

A ggplot object

...

Additional arguments passed to ggplot2::facet_wrap() or ggplot2::facet_grid(). This typically includes an unnamed formula argument describing the facets. scales and space are additional useful arguments. See the examples.

See also

ggplot2::facet_grid(), ggplot2::facet_wrap().

Examples

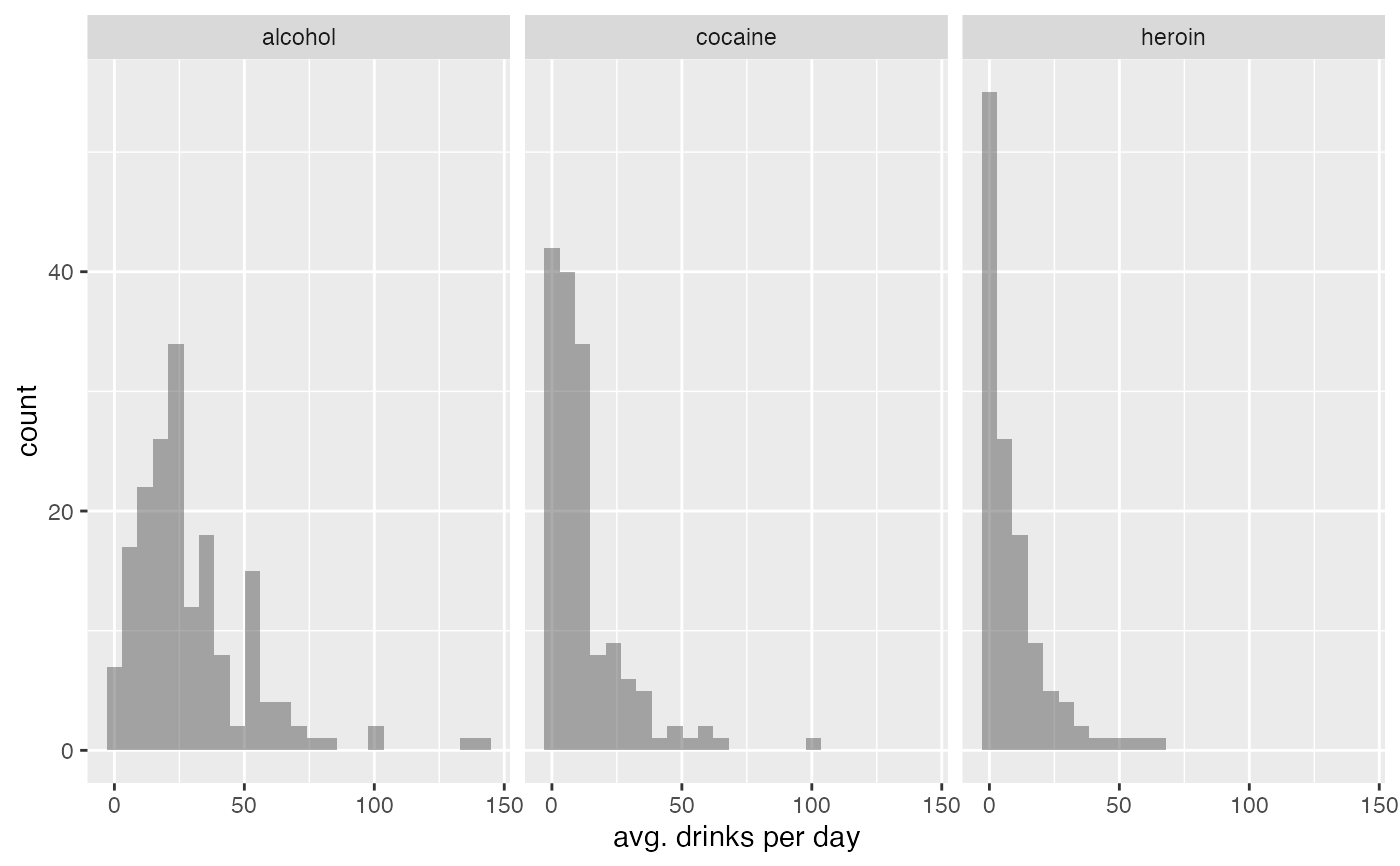

gf_histogram(~avg_drinks, data = mosaicData::HELPrct, bins =25) |>
  gf_facet_grid(~substance)

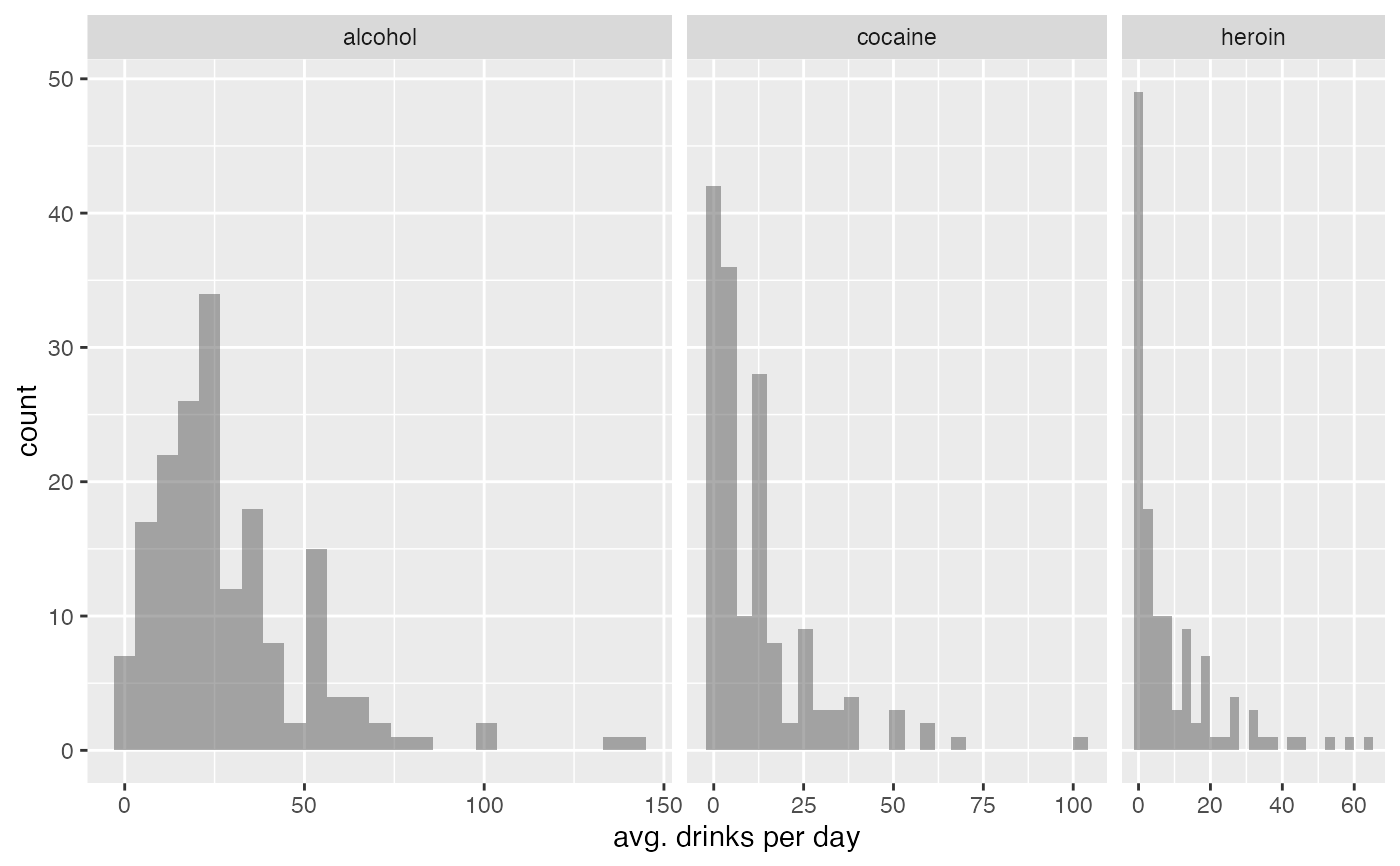

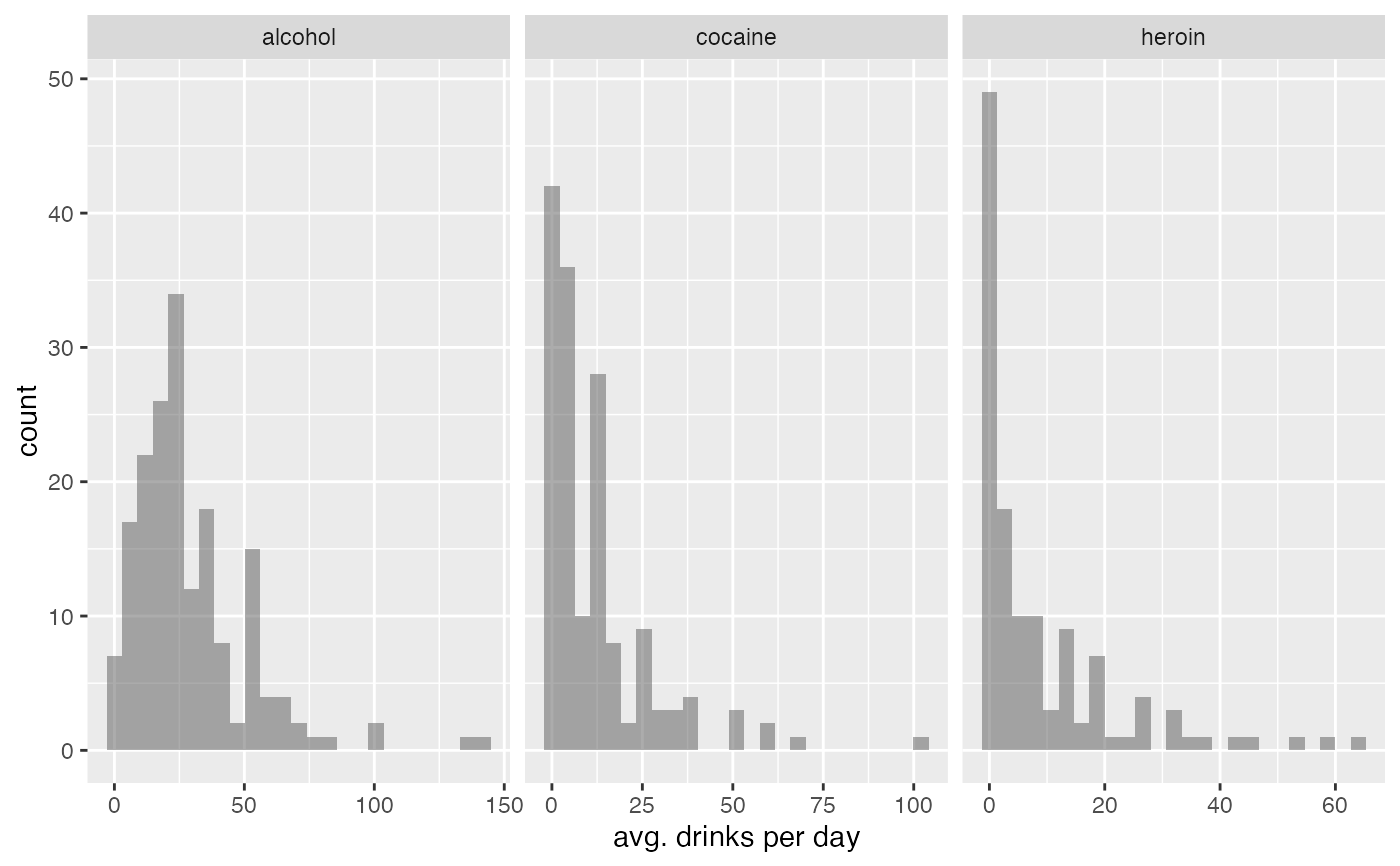

gf_histogram(~avg_drinks, data = mosaicData::HELPrct, bins =25) |>
  gf_facet_grid(~substance, scales = "free")

gf_histogram(~avg_drinks, data = mosaicData::HELPrct, bins =25) |>
  gf_facet_grid(~substance, scales = "free", space = "free")

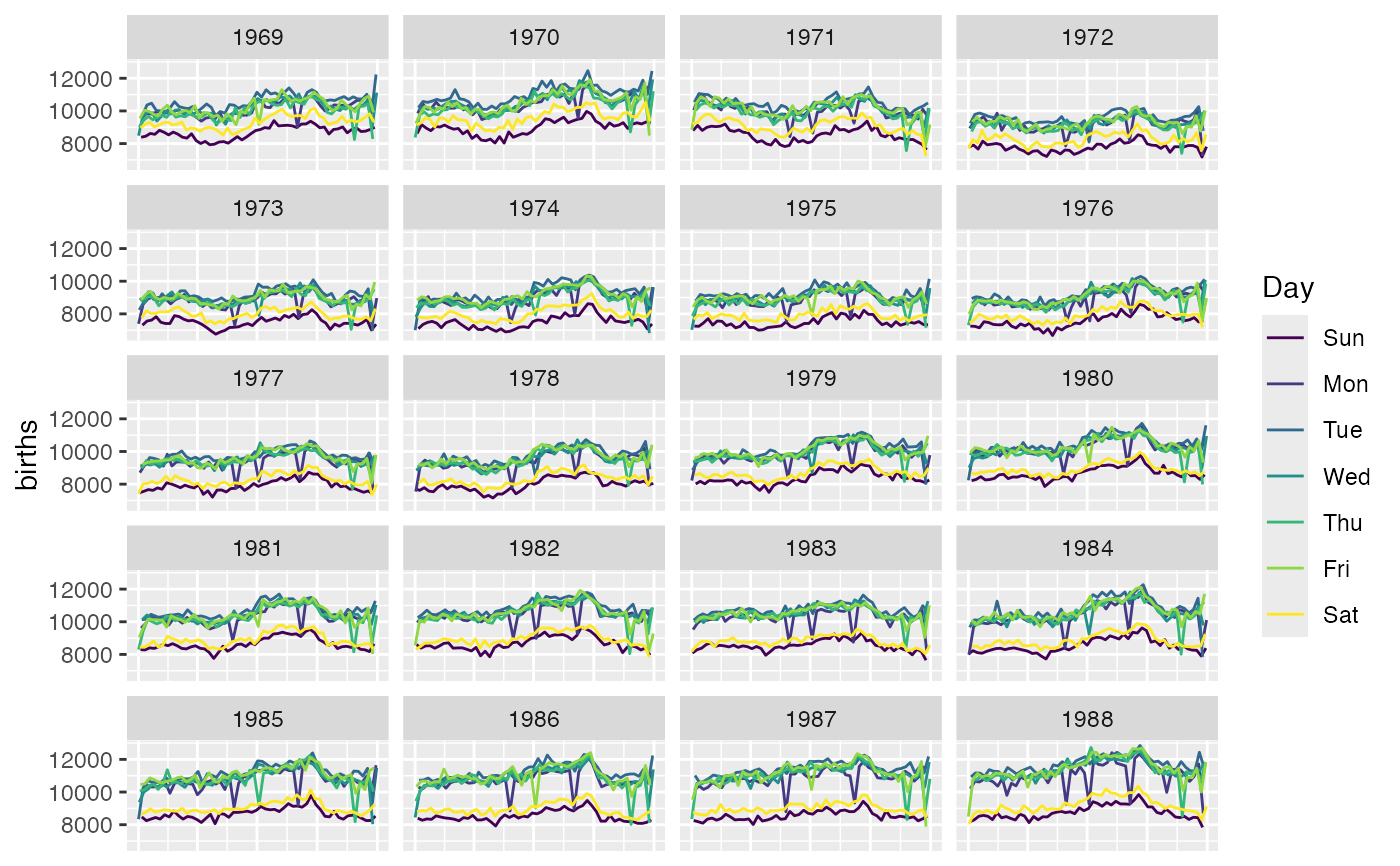

gf_line(births ~ date, data = mosaicData::Births, color = ~wday) |>
  gf_facet_wrap(~year, scales = "free_x", nrow = 5) |>
  gf_theme(
    axis.title.x = element_blank(),
    axis.text.x = element_blank(),
    axis.ticks.x = element_blank()
  ) |>
  gf_labs(color = "Day")
